產品簡介
| 產地 | 國產 | 控制形式 | 數控 |
|---|
根據機型及承重大小，床身采用整體/分體(即刀架導軌和工件導軌分開)兩種結構，床身導軌寬度大，切削穩定效率高。
主軸箱采用四檔液壓換擋機構，高精度齒輪傳動具有低噪音和高回轉精度的特點。
尾座套簡伸縮和尾座體移動均采用電機驅動，方便快捷。
主軸配自制的超重型單動四爪卡盤，夾緊可靠，壽命長。
尾座頂尖采用短錐柄法蘭式結構，具有高承重、高回轉精度的特點。
產品介紹

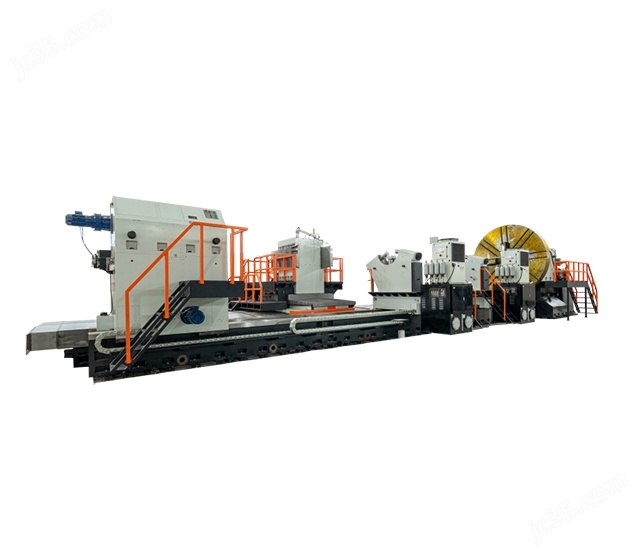

KW61系列數控重型臥式機床產品介紹：
根據機型及承重大小，床身采用整體/分體(即刀架導軌和工件導軌分開)兩種結構，床身導軌寬度大，切削穩定效率高。
Depending on the machine todl model and load capacity,the bed is dihided into an monolthic bed and a double bed structure
(The carriage guideway and workpiece guideway are separate). The bed guideway is wide, providing high stabity and cuting eficiency.
主軸箱采用四檔液壓換擋機構，高精度齒輪傳動具有低噪音和高回轉精度的特點。
The headstock adopts a four-speed hydrauic shifting mechanlsm, with high-precision gear transmission characterized by
low noise and high rotary accuracy.
尾座套簡伸縮和尾座體移動均采用電機驅動，方便快捷。
The tallstock aul and tallstock body movement are both driven by motors, providing convenience and speed.
主軸配自制的超重型單動四爪卡盤，夾緊可靠，壽命長。
The spindle is equipped with a sel-made super heavy-duty single-acing four-jaw chuck, ensuring reliable clamping and long service life.
尾座采用短錐柄法蘭式結構，具有高承重、高回轉精度的特點。
The talstock canter adopts a short taper shank fiange-type structure, characerized by high load-beaning capacity and high rotary accuracy.
標準配置:
西門子系統，自動四檔齒輪箱，框式刀架，手動卡盤，電柜空調等，電動尾座等
Standard:
Siemens system, Gear spindle, Box type turret, anual heavy-duty chuck, electric cabinet air conditioner, Electric talstock etc.
可選配置:
發那科/國產系統，油冷機，光柵尺，轉塔刀架、鏜刀裝置，銑削裝置，磨削裝置，自動排屑機、中心架等
Optional:
Fanuc/GSK/KND, ol cooling device, linear encoder, turet, boring device, grinding device, miling device, chip conveyor, steady rest.
(本頁面機型支持個性化定制)
(This page supports personalized customization of machine tools )
| 主要參數/Specification | KW61100 | KW61125 | KW61160 | KW61200 | KW61250 | KW61300 | KW61350 | KW61450 | |
| 床身上回轉直徑/Swing over bed | mm | 1000 | 1250 | 1600 | 2000 | 2500 | 3000 | 3500 | 4500 |
| 床鞍上回轉直徑/Swing over cross slide | mm | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | 3000 | 4000 |
| 工件裝夾長度/Max workpiece length | m | 3~20 | 3~20 | 3~20 | 3~20 | 3~20 | 3~20 | 3~20 | 3~20 |
| 導軌形式/Guideway structure | 整體床身三導軌/3-Ways with monolithic bed | 整體床身三導軌/3-Ways with monolithic bed | 分離床身四導軌/4-Ways with separated bed | ||||||
| 雙承重/Max load between centers | t | 15 | 25 | 40 | 50/63 | 80 | 160 | 250 | 300 |
| 主軸箱形式/Headstock type | 液壓自動四檔/Auto 4-Step | 液壓自動四檔/Auto 4-Step | |||||||
| 主軸錐孔尺寸/Spindle taper | mm | 1:4(Φ106.375) | 1:4(Φ139.719) | 1:4(Φ196.869) | 1:4(重196.869) | 1:4(Φ196.869) | 1:4(Φ285.775) | 1:4(Φ285.775) | 1:4(Φ412.775) |
| 轉速范圍/Speed range | rpm | 1.6~320 | 1.3～250 | 1～200 | 0.8～160 | 0.63～100 | 0.5～80 | 0.4～70 | 0.35～63 |
| 花盤扭矩/Max torque of chuck | KN ·m | 19 | 25 | 58 | 68/82 | 125 | 160 | 200 | 250 |
| 花盤直徑/Chuck diameter | mm | 1000 | 1250 | 1600 | 2000 | 2500 | 3000 | 3500 | 4000 |
| X/Z向快移速度/Rapid Traverse X/Z | m/min | 4/4 | 4/4 | 4/4 | 4/4 | 4/4 | 4/4 | 4/4 | 4/4 |
| 刀架形式/Turret type | 框式主副刀板/Box type with 2 facing slides | 框式主副刀板/Box type with 2 facing slides | |||||||
| 外圓刀尺寸/OD tool size | mm | □40 | □40 | □50 | □60 | □60 | □60 | □60 | □60 |
| 主電機/Spindle motor | Kw | 45 | 55 | 75 | 90/110 | 110 | 132 | 143 | 180 |
Due to size constraints,for machine tocls exceading the parameters in the teble, plaase contact us to obtain detaled technical specifcations
*由于幅面限制，超過表格中的參數的機床，請聯系開蘭公司獲取詳細的技術參數
